Propulsion System
Twin CAT C9 567 HP engines
Speed: 20 knots
Range: 400 nautical miles
Final propulsion and system configuration is subject to project documents

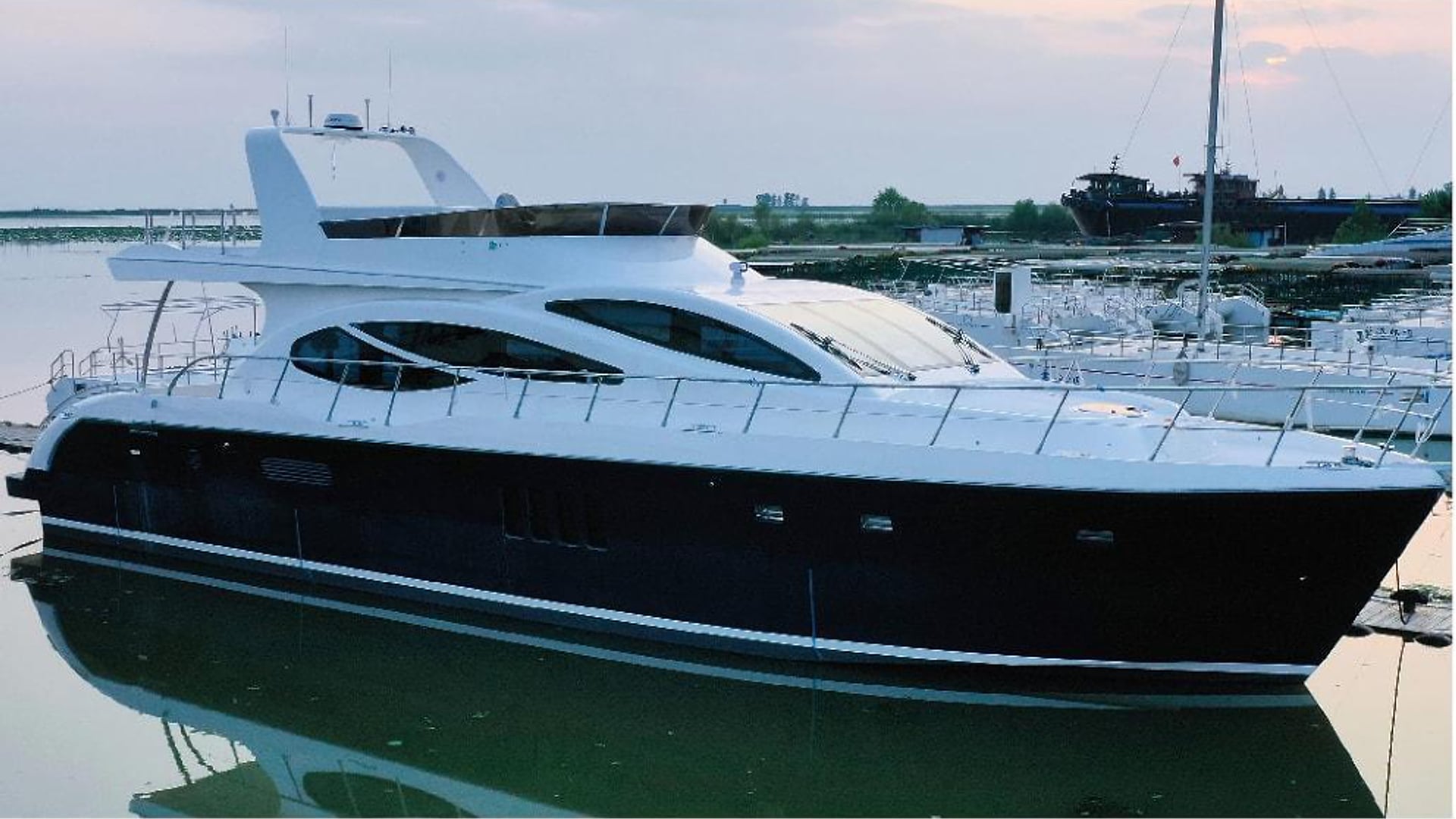

66 Ft Luxury Yacht
The 66 Ft Luxury Yacht has a 20.11 m overall length, 5.12 m beam, 3.03 m depth, 1.00 m draft and 35 t displacement, with twin CAT C9 567 HP engines, a speed of 20 knots, a 400-nautical-mile range and a certified capacity of 12 persons.
HANGYU · 66 FT
Explore every angle.
Exterior reference model
- Overall length
- 20.11 m
- Beam
- 5.12 m
- Draft
- 1.00 m
Video-refined exterior · V2. Reconstructed from multiple views and confirmed dimensions. Unmeasured details remain approximate; for presentation, not construction.
From Performance to Life at Sea
The interior distills contemporary style into a spacious, modern setting for coastal leisure, private parties and group events.
INTERIOR
Luxury Spaces
Three-Deck Layout
Core Specifications
Principal dimensions, displacement, propulsion, speed, range, capacity, certification options and reference build period are shown below. Final particulars are subject to the project specification, trials and delivery documents.
Specifications
- Overall Length
- 20.11 m
- Beam
- 5.12 m
- Depth
- 3.03 m
- Draft
- 1.00 m
- Displacement
- 35 t
- Certified Capacity
- 12 persons
- Fuel Capacity
- 2 × 1000 L
- Fresh Water Capacity
- 380 L
- Speed
- 20 knots
- Range
- 400 nautical miles
- Engine
- CAT C9 567 HP × 2
- Generator
- 15 kW / AC 230 V
- Certification Options
- RINA / CE / CCS
- Reference Build Period
- Approx. 2 years
SYSTEMS
Core Systems
Navigation & Communications
Garmin integrated radar system
Marine VHF radio
AIS automatic identification system
Navigation lights and control panel
Twin WEM2530BF steering units
Comfort Systems
Three Mermaid water-cooled air-conditioning units
Open galley with stainless-steel refrigerator
Private bathroom with electric toilet
Premium interior finishes and luxury furniture
LED lighting throughout
Safety & Firefighting
40CWZ-6 general-service fire pump
RULE-series flame-retardant system
RULE SuperSwitch bilge switch
Fixed HFC-227ea fire-suppression system in the propulsion compartment
5 kg portable dry-powder extinguishers × 2
Anchoring System
25 kg high-holding-power stainless-steel anchor
10 mm stainless-steel anchor chain
Stainless-steel windlasses × 2
16 mm mooring lines, 30 m × 2
Professional shore-mooring system
Electrical System
Engine-start battery banks: DC 24 V 200 Ah × 2
Emergency battery banks: DC 24 V 200 Ah × 2
Main distribution panel: AC 220 V / DC 24 V
Charger: AC 220 V to DC 24 V / 50 A
Shore-power socket: AC 220 V 50 A
Lighting & Appliances
Interior ceiling lights: LED 12 W × 12
Side-compartment lights: LED 3 W × 3
Interior work lights: LED 6 W × 4
135SL RC searchlight
High-quality switches and outlets
Hull & Outfitting
Strong, durable FRP hull
Streamlined exterior with reduced wind resistance
Stainless-steel ladders, rails and handrails
Glass cabin doors, windows and skylights
Premium marine coatings and refined workmanship
QUESTIONS FROM BUYERS
66 Ft Luxury Yacht FAQs
Answers to common questions about the use, configuration and project planning of 66 Ft Luxury Yacht.
What are the principal specifications of the 66 Ft Luxury Yacht?
Principal dimensions are 20.11 m overall length, 5.12 m beam, 3.03 m depth, 1.00 m draft and 35 t displacement, with twin CAT C9 567 HP engines.
What is the certified capacity of the 66 Ft Luxury Yacht?
Certified capacity is 12 persons including the operator and support personnel. The final vessel certificate takes precedence.
What are the speed and range of the 66 Ft Luxury Yacht?
Speed is 20 knots and range is 400 nautical miles. Actual results depend on load, sea state and configuration.
Which certification options are available?
RINA, CE or CCS certification and inspection routes can be considered according to project requirements. Final scope is subject to the contract, plan approval and issuing authority.
What is the reference build period and can the yacht be customized?
The reference build period is approximately two years. Layout, equipment and functions can be developed for the project, with the contractual schedule taking precedence.
